DJ Series Self-Priming Centrifugal Sewage Pump

Inlet/Outlet Dia: 1.5inch, 2inch, 3inch, 4inch, 6inch, 8inch
Max Flow Rate: 468m³/h(130L/S)
Max Head: 60m
Max Solid Size: 76mm
Max Suction Lift: 7m
Material of Construction: Cast Iron standard; Ductile Iron, Bronze optional
Drive Option: Diesel engine, electric motor, or bare pump

Description

PRODUCT DESCRIPTION

DJ pumps are series of self-priming sewage pumps , with solids handling, resistant to abrasion, which is similar as Victor & Varisco 's pumps. This pumps can handle liquids to a viscosity of about 50 mm2/s and can be applied in many fields, such as industry, civil engineering, marine, waste treatment and so on.

Download

PERFORMANCE DATA

DJ Performance Table 50HZ
Model No.	Inlet/Outlet dia (inch)	Solid Size(mm)	Flow Rate(m3/h)	head(m)	Speed(rpm)	Motor Power(kw)
DJ40-110	1-1/2"	20	7	14	2900	1.1
			14	11
			19	8
DJ50-120	2"	25	13	15	2900	2.2
			25	11
			34	8
DJ80-140	3"	28	24	21	2900	5.5
			43	18
			63	12
DJ80-215	3"	40	25	13	1450	4
			44	11
			60	8
DJ100-160	4"	45	50	27	2900	15
			100	23
			130	18
DJ100-160A	4"	45	50	24.5	2900	15
			100	20
			130	14
DJ100-250	4"	50	50	18	1450	7.5
			100	14
			130	10
DJ150-250	6"	76	95	13	1450	11
			200	10
			230	8
DJ150-400	6"	50	150	37	1450	45
			200	36
			310	30
DJ200-300	8"	60	150	18.5	1450	22
			300	14
			380	10
DJ Performance Table 60HZ
Model No.	Inlet/Outlet dia (inch)	Solid Size(mm)	Flow Rate(m3/h)	head(m)	Speed(rpm)	Motor Power(kw)
DJ40-110	1-1/2"	20	8.5	21	3500	2.2
			17	16
			23	12
DJ50-120	2"	25	15	22	3500	4
			30	16
			41	11
DJ80-140	3"	28	28	31	3500	11
			50	26.5
			75	18
DJ80-215	3"	40	30	19	1750	7.5
			53	16
			72	11.5
DJ100-250	4"	50	60	26	1750	15
			120	20
			160	14
DJ150-250	6"	76	115	20	1750	18.5
			240	14
			270	12
DJ150-400	6"	50	180	54	1750	90
			240	52
			370	43
DJ200-300	8"	60	170	27	1750	37
			360	20
			450	15

PRODUCT FEATURES

7m Self-Priming

Reliable self-priming ability that max suction lift can get 7 m without foot valve.

Easy Installation

Easy to install. the pump can be installed in a high or dry place for easy maintenance and operation.

3-Inch Solids

Semi-open impeller, the max solid particles size allowed to pass is 3 inches (76 mm)

Durable Wear Plate

High wear resistance and easy to replace wear plate.

APPLICATION

Agriculture irrigation
Marine - Ballasting & Bilge
City drainage or civil defense
Agricultural irrigation chemical plants
Municipal engineering, sewage work, constructional engineering
Sewage collection and discharge in residential community
Sewage discharge in hospitals, hotels, etc
Centralized and staged disposal system of urban sewage disposal plants
Severe industrial and commercial sewage treatment

CONFIGURATION OPTIONAL

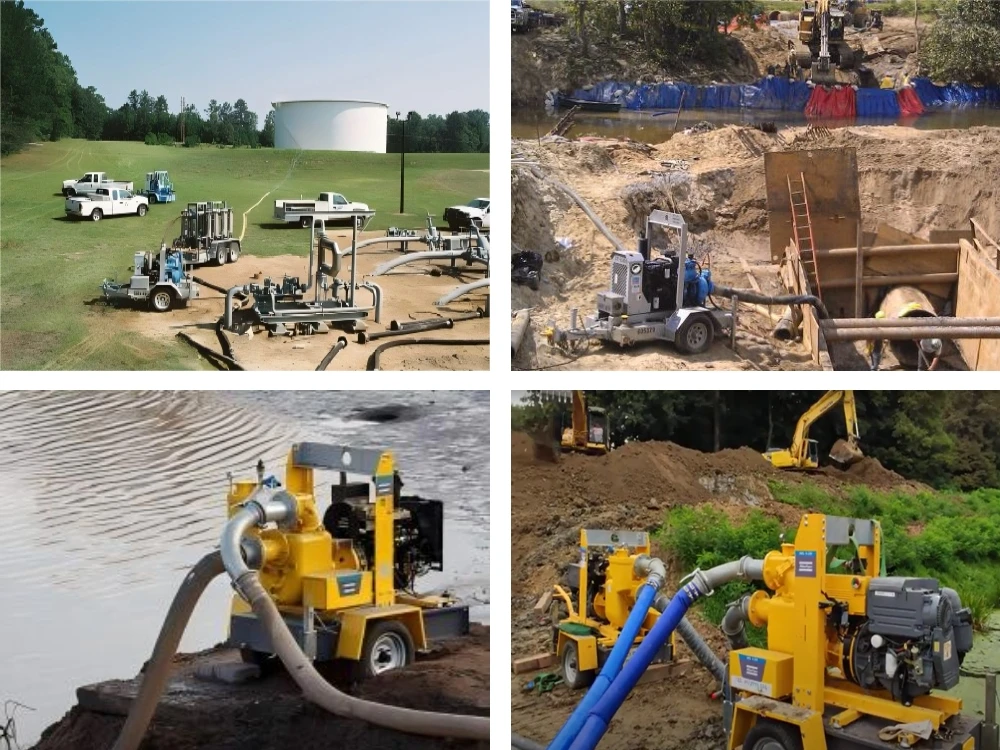

Skid Mounted Diesel Engine Pump
Silent Type Diesel Engine Pump
Electric Motor Pump ( Directly Driven)
Electric Motor Pump ( Belt Driven)
2 Wheels Trailer Mounted
4 Wheels Trailer Mounted
Rain-cover (For Engine )
Full Closed Type Rain-cover (For Both Engine and Pump)

FAQ

1What are the performance specifications of the DEFU DJ series 6inch self-priming sewage pump?

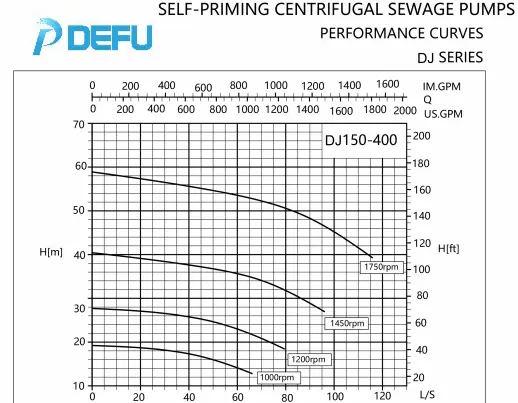

The DEFU DJ150-400 heavy-duty self-priming sewage pump is engineered for critical wastewater management applications with high performance:
Maximum Flow Rate: 415 m³/h ;
Shut-off Head: 59m;
Suction Lift Capacity: ≤7.5m;
Max Solid Particle Handling: 50mm

2Who are the global leaders in self-priming pump?

There are global Top 10 self-priming pump brand for reference: Cornell Pump, Gorman-Rupp, Godwin, KSB, Sykes, Thompsion, Pioneer, Varisco, Selwood, Multiflo and so on.

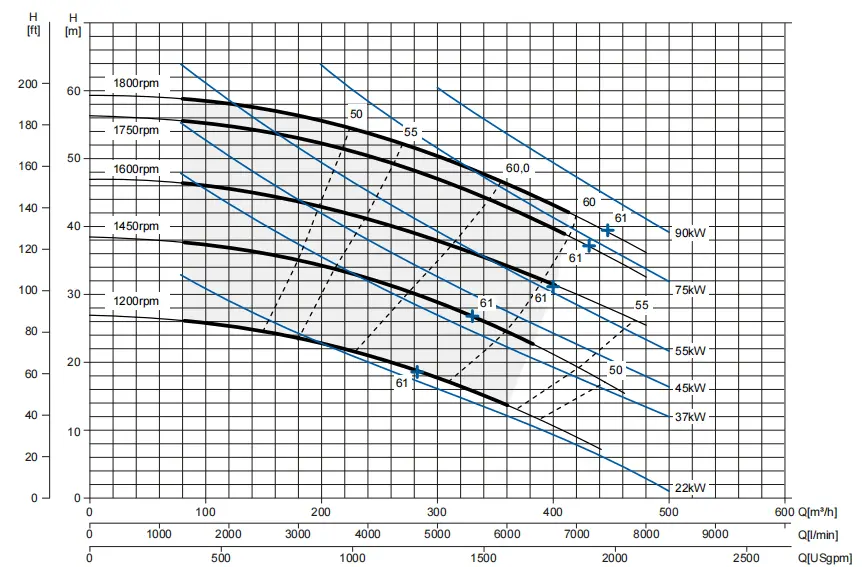

3What are the performance in leading global brand pump like Varisco 6inch J Series pump?

The Varisco J Series 6inch pump demonstrates the following performance characteristics:
Max Flow Rate: 420 m³/h;
Shut-off Head: 58m;
Suction Lift Capacity: ≤7.5m;
Max Solids handling: 50mm
