TPOW Split Case Double Suction Pump

Discharge Size: DN80-1000mm
Max Flow Rate: 16236m³/h
Max Head: 300m
Temperature Range: -15 to 200°C
Speed: 372 to 2950rpm
Seal Type: Packing or Mechanical Seal
Drive Option: Diesel Engine, Electric Motor, or Bare Pump

Description

PRODUCT DESCRIPTION

TPOW series double suction centrifugal water pump is single-stage double-suction split volute casing centrifugal pump and is specially designed and manufactured by our company which based on the market requirement and introducing in German lead technology. Pump through original impeller and modified impeller and cutting, the pump is with full and broad, high efficiency. In the performance scope, according to consumers’ needs, may provide pump with any flow and head. Because of it's high flow features, our pump are widely used in dewatering, drainage, flood, irrigation and fire fighting areas.

Download

Pump Presentation

PRODUCT FEATURES

Convenient Maintenance with Horizontal Split-Case Design

Tpow series pump is of horizontal split-case structure with suction port and discharge port both on the common pump base. When repairing the pump, there is no need to dismantle the pipeline, making the maintenance and repair of the pump more convenient.

Double Suction Impeller for Improved Flow and Cavitation Resistance

Double suction impeller makes axial force balance, improves anti-cavitation performance, and transfer higher flow rate liquids.

High-Precision Bearings and Leakage Prevention

The shaft uses high precise imported bearing and shaft seal is located in the low pressure zone of insize pump. Therefore, it is not easy to make leakage.

Flexible Mounting and Seal Options for Various Conditions

TPOW series pump can be vertically or horizontally mounted according to diferent working condition, with mechanical seals or packing seals.

APPLICATION

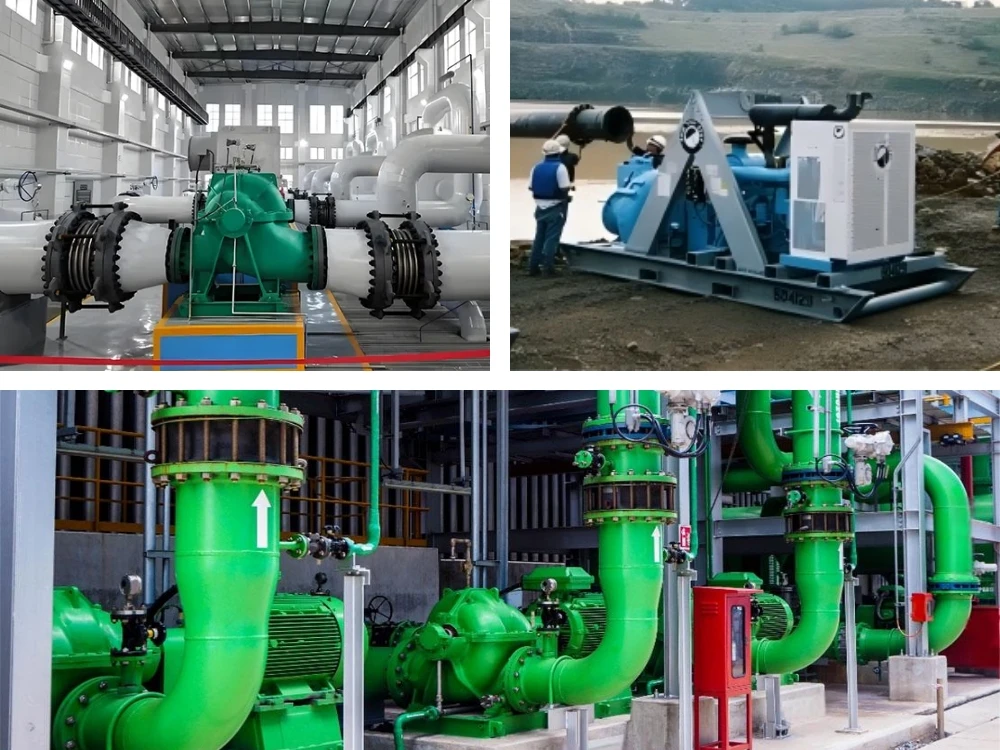

Fire-Fighting System
Irrigation
Draining Pump Station
Electric Power Station
Air Condition Water Circulation
Industrial Water Supply System
Shipbuilding Industry
General Use in Oil Refining Industry

CONFIGURATION OPTIONAL

Skid Mounted Diesel Engine Pump
Silent Type Diesel Engine Pump
Electric Motor Pump ( Directly Driven)
Electric Motor Pump ( Belt Driven)
2 Wheels Trailer Mounted
4 Wheels Trailer Mounted
Rain-cover (For Engine )
Full Closed Type Rain-cover (For Both Engine and Pump)

FAQ

1What is the difference between a split case centrifugal pump and a single-stage centrifugal pump?

The main difference is in the casing design and the number of impellers: Split Case Pump: Has a split casing and is typically designed for large-scale, high-flow applications. It can handle larger volumes of fluid at higher heads. Single-Stage Pump: Generally has a single casing and impeller, designed for lower-flow applications, though still capable of handling medium to high-pressure needs.

2How does a split case centrifugal pump work?

A split case centrifugal pump works by using an impeller to create kinetic energy, which is then converted into pressure energy to move the fluid through the pump. The pump casing is split into two halves, which allows for easier maintenance and less downtime.

3What types of rain covers are available for your pumps?

It can be normally provided with simple rain cover, semi-closed rain cover and full-closed rain cover. We can also supply silence box if customer have requirements on noise.
