TX/TH Series Water Pump Self Priming Sewage Pump

Inlet/Outlet Dia: 3inch, 4inch,6inch, 10inch for TX series; 2inch, 3inch, 4inch, for TH series
Max Flow Rate: 1021.5m3/h(4500GPM) for TX series; 454m3/h(2000GPM) for TH series
Max Head: 55m(180foot) for TX series; 84.4m(276foot) for TH series
Max Solid Size: 76mm(3inch)
Max Suction Lift: 7.6m
Material of Construction: Cast Iron
Drive Option: Diesel Engine, Electric Motor, or Bare Pump

Description

PRODUCT DESCRIPTION

TX/TH series self priming sewage pumpsis designed for dispose ultra long fiber impurities, reliable 3inch solids and clear liquids handling. It is similar as Cornell's pumps which can be interchanged with same performance. With excellent self priming fuction and high suction lift, this trash pump is also widely used in irrigation, flood drainage and underground water drainage fields. TX TH series self priming pumps are the upgraded version with more high performance than old JT& JU series.

Download

Pump Presentation

PERFORMANCE DATA

Model No.	Inlet/Outlet dia (inch)	Max Flow Rate(m3/h)	Max head(m)	Max suction lift(m)	Max Solid Size(mm)	Max Speed(rpm)	Max Shaft Power(hp)
TX3	3*3 with flange	124.9	40.2	7.6	64	2200	22
TX4	4*4 with flange	204.4	46	7.6	76	2100	40
TX6	6*6 with flange	381.6	51.8	7.6	76	1900	75
TX10	10*10 with flange	1021.5	55	7	76	1600	125
TH2	3*2 with flange	112.7	57.3	7.6	38	2950	25
TH3	4*3 with flange	238.5	84.4	7.6	63.5	2200	85
TH4	6*4 with flange	454.25	68.58	7	76	2100	100

PRODUCT FEATURES

Outstanding Self Primping Performance

Ultra strong self priming performance enables this pump to be installed above the liquid level. Long drive shaft, hanging bracket and other devices are not required. What it only requires is to put suction pipe into the sewage. In first use, you only need to fill up the pump chamber with liquid to complete initial self priming. Then, the sewage pump can automatically conduct self priming, thus dramatically reducing installation time and maintenance cost.

Easy Maintenance Structure

It is very convenient to remove pump’s cover from its non-drive end, and slides can be easily pulled out for inspection or replacement. It is also easy to access to the centrifugal pump’s impeller, wear ring or mechanical seal for inspection or maintenance without removing diesel engine or pump’s frame since the centrifugal pump’s suction cover can be fully opened.

Solids Handling Impeller

Ductile iron two-blade impeller handles solids up to 3” in diameter. Impeller back vanes reduce the buildup of foreign matter and pressure in the stuffing box.

High-efficiency design,high rpm capacity

TX/TH series has higher efficiency, which can reduce the power and fuel consumption of the corresponding power, and reduce energy consumption; higher speed, can be used in conditions with higher head.

Higher Weight with Same Dimensions

DEFU's pump is heavier with thicker pump casing than other supplier's pump with same dimensions. If the pump casing is litter thin, the pump casing will be rupture and damaged once the pump work with high pressure.

Dry Running with Low Maintenance Design

Special oil lubrication structure allows the pump to run dry. It can also reduce the maintenance cost with split design of bearing and pump casing.

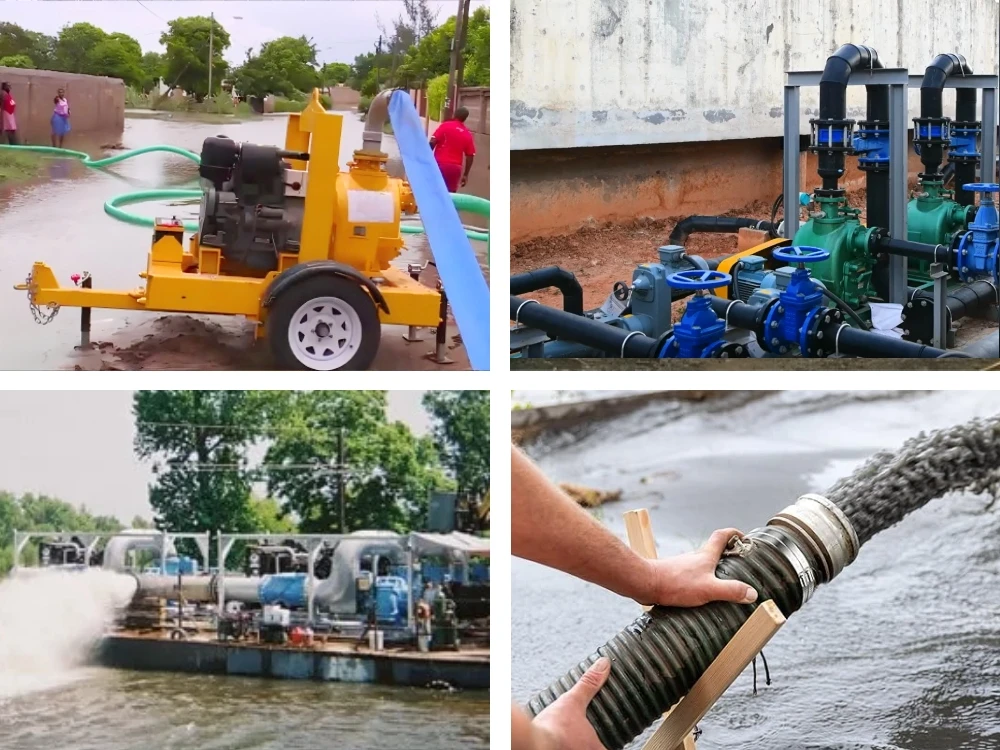

APPLICATION

Subsurface drainage or mine water drainage
Sewage disposal, suitable for sewage disposal plants, hospitals, etc
Flood drainage station or civil defense system
Agricultural irrigation chemical plants
Municipal engineering, sewage work, constructional engineering
Sewage collection and discharge in residential community
Sewage discharge in hospitals, hotels, etc
Centralized and staged disposal system of urban sewage disposal plants
Severe industrial and commercial sewage treatment

CONFIGURATION OPTIONAL

Skid Mounted Diesel Engine Pump
Silent Type Diesel Engine Pump
Electric Motor Pump ( Directly Driven)
Electric Motor Pump ( Belt Driven)
2 Wheels Trailer Mounted
4 Wheels Trailer Mounted
Rain-cover (For Engine )
Full Closed Type Rain-cover (For Both Engine and Pump))

FAQ

1What are the performance specifications of the DEFU TX6 6inch self-priming sewage pump?

The DEFU TX6 heavy-duty self-priming sewage pump is engineered for critical wastewater management applications with high performance:
Maximum Flow Rate: 381.6 m³/h
Shut-off Head: 51.8m
Suction Lift Capacity: ≤7.6m
Max Solid Particle Handling: 76mm

2Who are the global leaders in self-priming pump?

There are global Top 10 self-priming pump brand for reference: Cornell Pump, Gorman-Rupp, Godwin, KSB, Sykes, Thompsion, Pioneer, Varisco, Selwood, Multiflo and so on.

3What are the performance in leading global brand pump like Gorman-Rupp 6inch T-Series pump?

The Gorman-Rupp T-Series 6inch pump demonstrates the following performance characteristics:
Max Flow Rate: 336.1 m³/h; Shut-off Head: 32.9m; Suction Lift Capacity: ≤7.6m; Max Solids handling: 76mm
